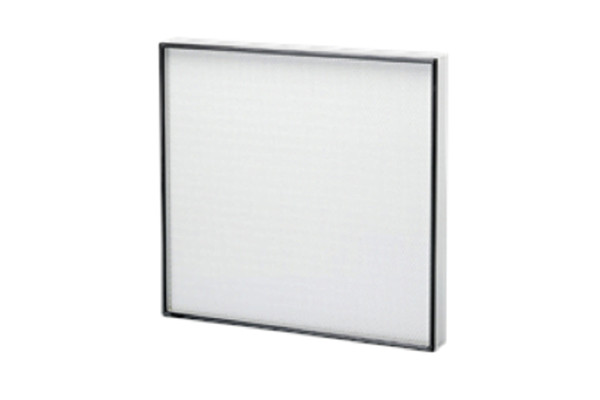

Fnter diaphragmless high efficiency filter is used in the end environment process of high-grade clean room in microelectronics and pharmaceutical industry, with efficiency ranging from E11 to U17,

Perform scan by scan test in full accordance with EN1822 MPPs test method. Each piece of test data is reflected in the test report and product label.

The frame is made of anodized alumina, and the integrated air tight gasket is adopted on both sides of the inlet and outlet air to ensure the lasting sealing integrity.

Advantages and features:

Each filter shall be scanned and tested one by one, and an independent test report shall be attached

The unique pleating process of filter material effectively increases the filtering area of filter material, increases the dust holding capacity, extremely low energy consumption and longer service life.

Standard specification:

305mmx610mmx90 610mmx610mmx90mm

610mmx610mmx70mm 305mmx610mmx70mm

Final resistance

600pa
