Fnter - activated carbon filter barrel is suitable for the control of high concentration gaseous molecular pollutants and dry column chemical filter material with high performance Effective removal capacity.

It can be combined with independent unit structure. The sealing structure is designed to prevent gas bypass. There is no need to replace the frame, just replace the filter barrel.

According to different types and concentrations of gaseous pollutants, equipped with different chemical filter materials, installed in make-up air unit or circulating air, the removal efficiency can reach more than 90%.

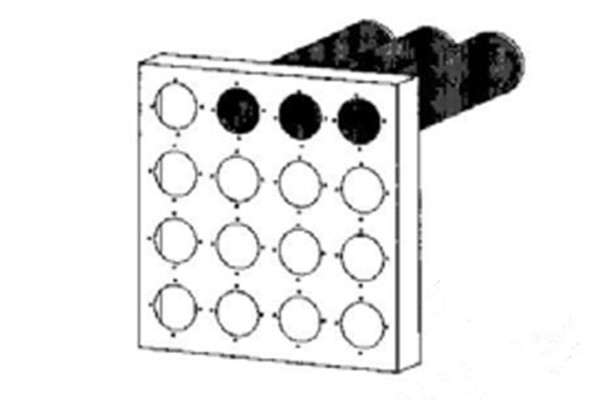

Advantages and features: The filter cartridge is installed in the fixed frame, and the unique filter material barrel structure design can effectively remove gaseous pollutants.

Meanwhile, the frame is made of stainless steel or galvanized iron, durable. With the cylindrical filter, it can be directly installed in the air conditioning box,

Select different chemical filter materials to remove the corresponding AMC, with high filtration efficiency.

Standard specification:

D145mmx450mmx26mm D145mmx650mmx26mm

Frame specification:

610mmx610mmx70mm or 610mmx303mmx70mm
